Spring Cloud로 개발하는 마이크로서비스 애플리케이션_Catalogs and Orders Microservice_3





Spring Cloud로 개발하는 마이크로서비스 애플리케이션(MSA)

Catalogs Microservice

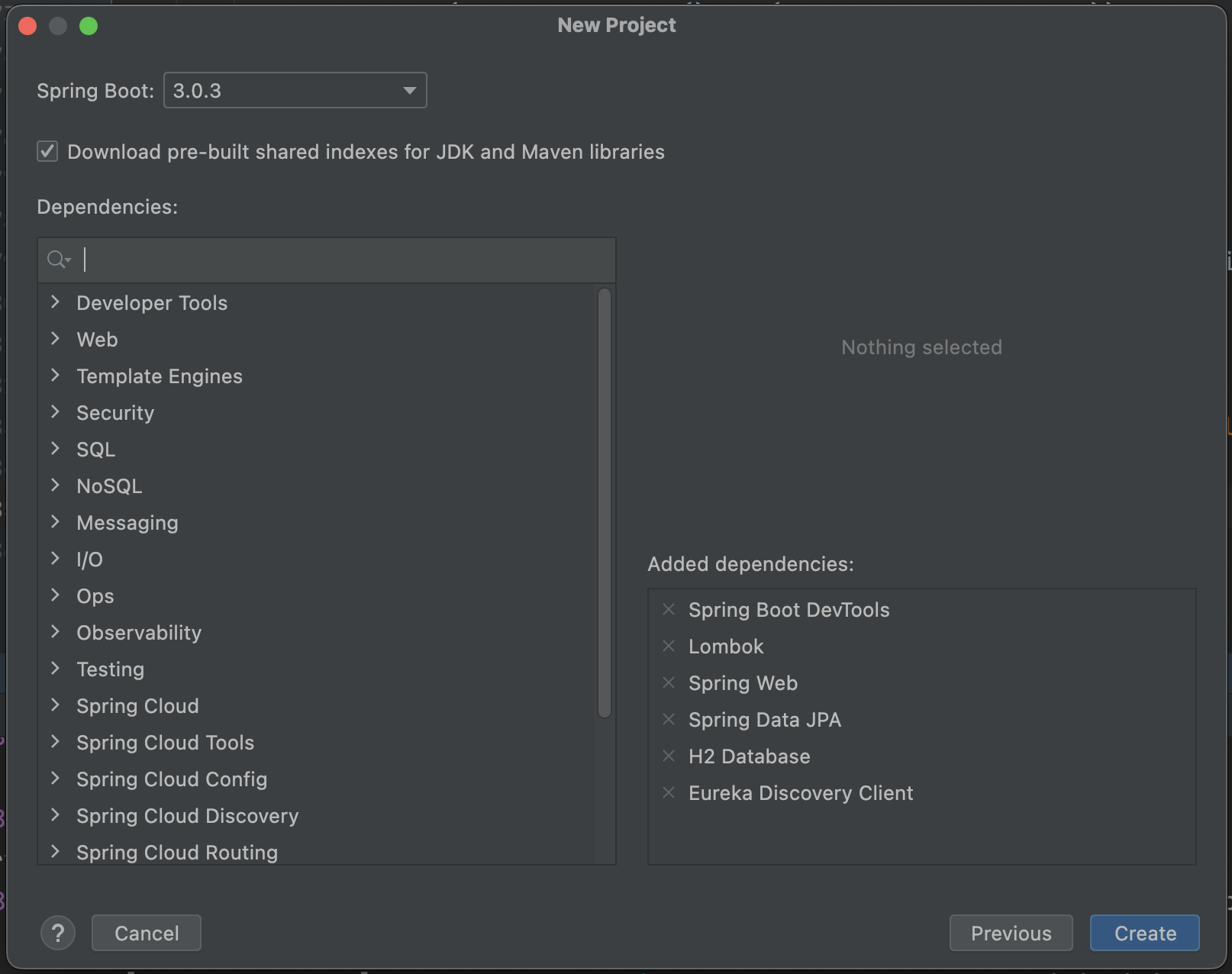

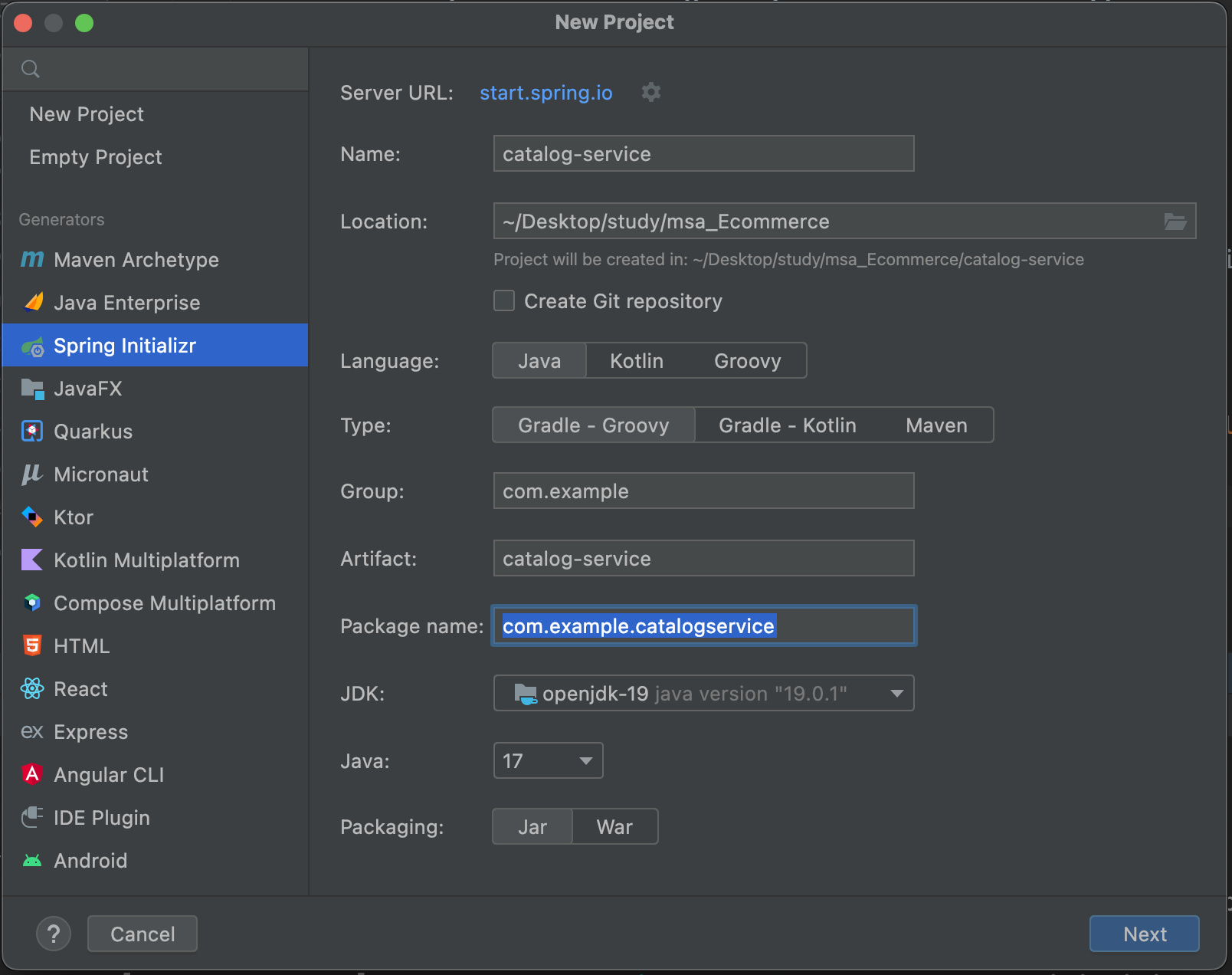

프로젝트 생성

강의에서는 스프링부트 버전을 2.4.2로 선택, 나는 3.0.3으로 선택했다.



build.gradle

ModelMapper dependancy 추가

implementation 'org.modelmapper:modelmapper:2.4.2'





application.yml

server:
  port: 0

spring:
  application:
    name: catalog-service
  h2:
    console:
      enabled: true
      settings:
        web-allow-others: true
      path: /h2-console
  jpa:
    hibernate:
      ddl-auto: create-drop
    show-sql: true
    generate-ddl: true
    defer-datasource-initialization: true
  datasource:
    driver-class-name: org.h2.Driver
    url : jdbc:h2:mem:testdb

eureka:
  instance:
    instance-id: ${spring.application.name}:${spring.application.instance_id:${random.value}}
  client:
    register-with-eureka: true
    fetch-registry: true
    service-url:
      defaultZone: http://127.0.0.1:8761/eureka
logging:
  level:
    com.example.catalogservice: DEBUG





data.sql

insert into catalog(product_id, product_name, stock, unit_price)
    values('CATALOG-001', 'Berlin', 100, 1500);
insert into catalog(product_id, product_name, stock, unit_price)
    values('CATALOG-002', 'Tokyo', 110, 1000);
insert into catalog(product_id, product_name, stock, unit_price)
    values('CATALOG-003', 'Stockholm', 120, 2000);





CatalogEntity.java

@Data
@Entity
@Table(name = "catalog")
public class CatalogEntity implements Serializable {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @Column(nullable = false, length = 120, unique = true)
    private String productId;

    @Column(nullable = false)
    private String productName;

    @Column(nullable = false)
    private Integer stock;

    @Column(nullable = false)
    private Integer unitPrice;

    @Column(nullable = false, updatable = false, insertable = false)
    @ColumnDefault(value = "CURRENT_TIMESTAMP")
    private LocalDateTime createAt;
}





CatalogRepository.interface

public interface CatalogRepository extends CrudRepository<CatalogEntity, Long> {
    CatalogEntity findByProductId(String productId);
}





CatalogDto.java

@Data
public class CatalogDto implements Serializable {

    private String productId;
    private Integer qty;
    private Integer unitPrice;
    private Integer totalPrice;

    private String orderId;
    private String userId;

}





ResponseCatalog.java

@Data
@JsonInclude(JsonInclude.Include.NON_NULL)
public class ResponseCatalog {
    private String productId;
    private String productName;
    private Integer unitPrice;
    private Integer stock;
    private LocalDateTime createdAt;
}





CatalogService.interface

public interface CatalogService {

    Iterable<CatalogEntity> getAllCatalogs();
}





CatalogServiceImpl.java

@Data
@Slf4j
@Service
public class CatalogServiceImpl implements CatalogService{

    CatalogRepository catalogRepository;

    @Autowired
    public CatalogServiceImpl(CatalogRepository catalogRepository) {
        this.catalogRepository = catalogRepository;
    }

    @Override
    public Iterable<CatalogEntity> getAllCatalogs() {
        return catalogRepository.findAll();
    }
}





CatalogController.java

@RestController
@RequestMapping("/catalog-service/")
public class CatalogController {

    Environment env;
    CatalogService catalogService;

    @Autowired
    public CatalogController(Environment env, CatalogService catalogService) {
        this.env = env;
        this.catalogService = catalogService;
    }

    @GetMapping("/health_check")
    public String status() {
        return String.format("It's Working in Catalog Service on PORT %s",
                env.getProperty("local.server.port"));
    }

    @GetMapping("/catalogs")
    public ResponseEntity<List<ResponseCatalog>> getCatalogs() {
        Iterable<CatalogEntity> catalogList = catalogService.getAllCatalogs();

        List<ResponseCatalog> result = new ArrayList<>();
        catalogList.forEach(v -> {
            result.add(new ModelMapper().map(v, ResponseCatalog.class));
        });

        return ResponseEntity.status(HttpStatus.OK).body(result);
    }
}



서버 재실행 후 확인

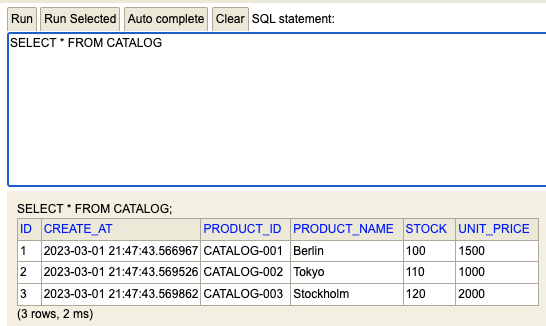

h2 DB 확인





apigateway-service에 Catalog-service 등록

• application.yml

routes:
  - id: user-service
    uri: lb://USER-SERVICE
    predicates:
      - Path=/user-service/**
  - id: catalog-service
    uri: lb://CATALOG-SERVICE
    predicates:
      - Path=/catalog-service/**

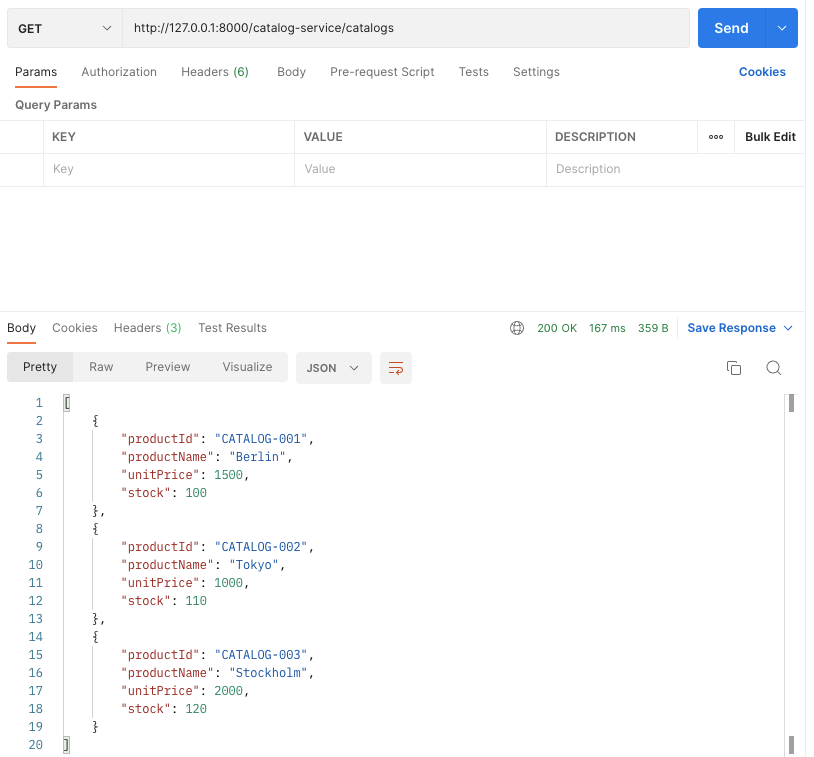

서버 재실행 후 포스트맨 확인





---

- 출처 : 인프런 Spring Cloud로 개발하는 마이크로서비스 애플리케이션(MSA) 강의
